A&E DEPARTMENT & NEO-NATAL UNIT AT UNIVERSITY HOSPITAL WATERFORD

This development comprised the construction of a new three storey building in a very restricted site adjacent to the existing Accident and Emergency Department of the Hospital.

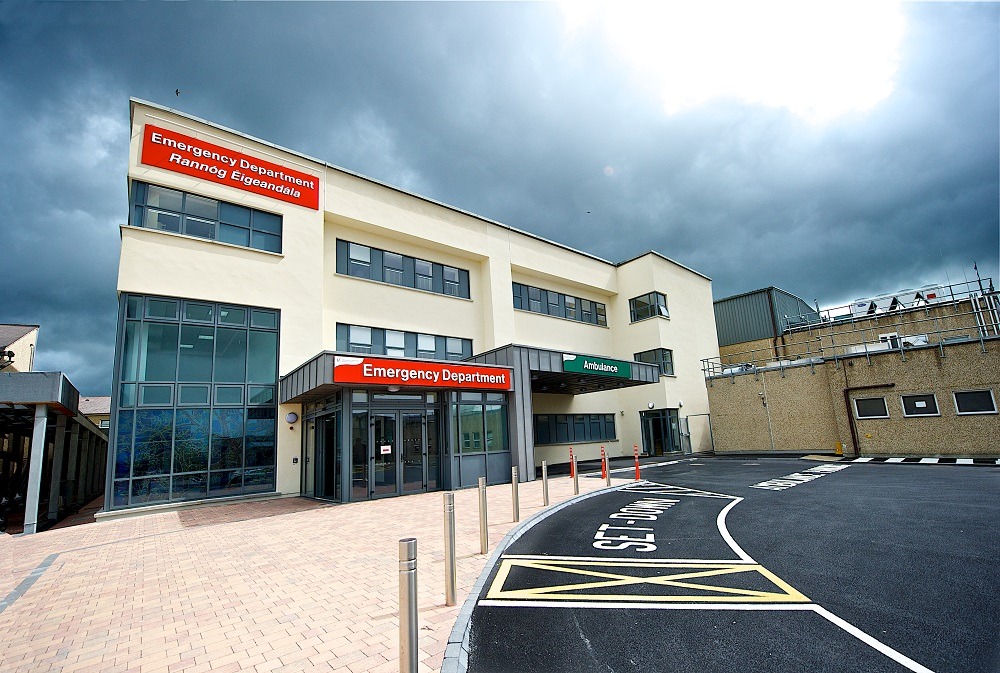

Emergency Department Entrance | A&E DEPARTMENT & NEO-NATAL UNIT AT UNIVERSITY HOSPITAL WATERFORD
Emergency Department Entrance | A&E DEPARTMENT & NEO-NATAL UNIT AT UNIVERSITY HOSPITAL WATERFORD

Delivered services:

Civil Engineering, Structural engineering

PROJECT DESCRIPTION

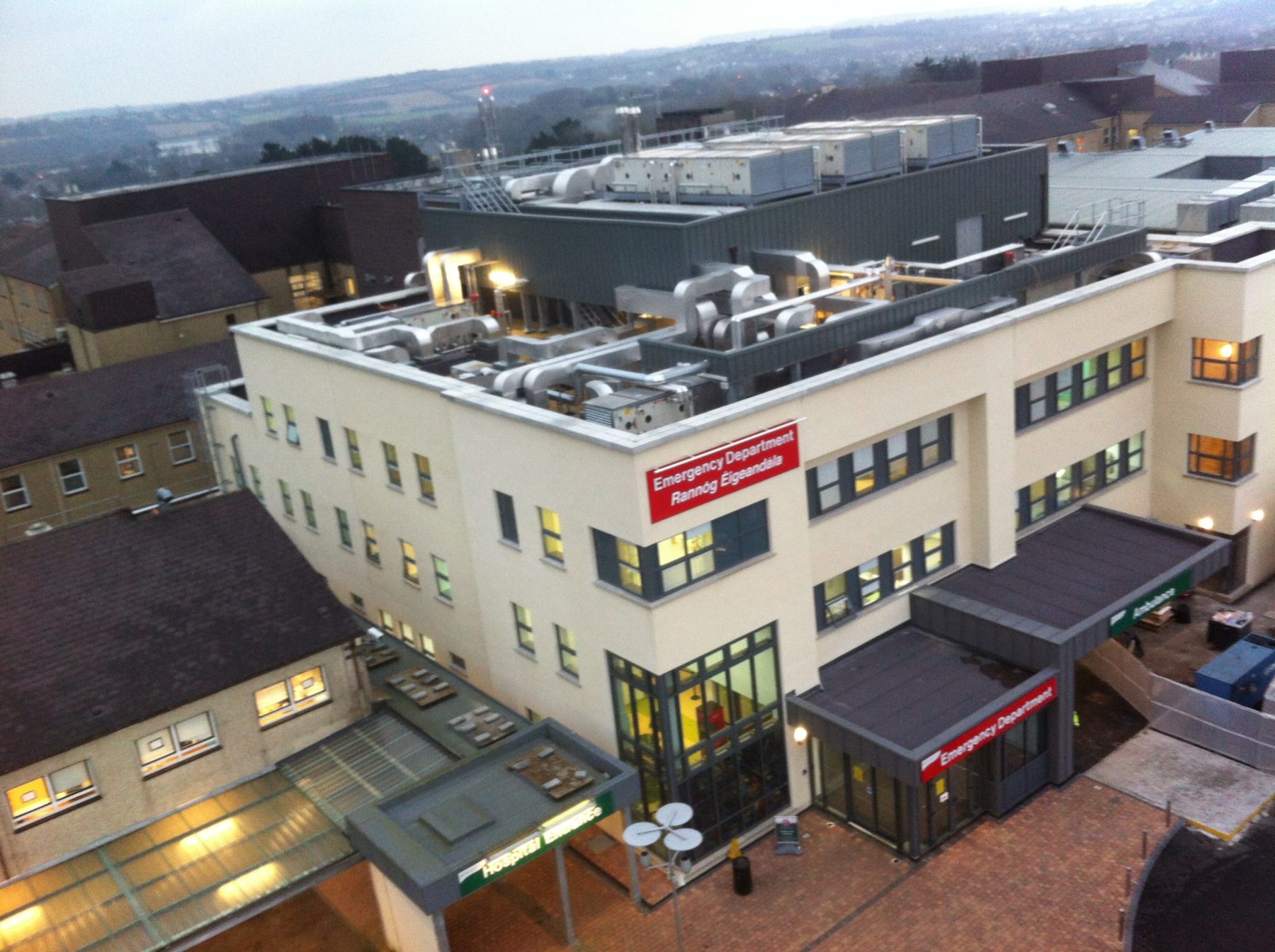

The building is designed to accommodate Acute Services at each of the three floor levels and is fully integrated into the existing hospital at each level. As part of the project delivery, a two-storey building was constructed within an internal hospital courtyard close to the works to provide temporary accommodation in the short term during construction and to house new scanning equipment thereafter. The new accommodation on the ground floor was designed to significantly improve the treatment procedures offered to patients in emergency situations and involved increasing the footprint of the existing department two-fold and fully integrating the new with the existing one. Floor levels for the project were chosen to match existing hospital levels and an additional plant was located in a two-storey steel framed enclosure over the roof. Structural in-situ reinforced concrete framing provided the most appropriate structural solution, addressing the complex layouts at each floor level and also providing the necessary flexibility for the provision of building services, which became a key driver in the design process.

PROJECT COMPLEXITIES

The adjacency of the construction works to live hospital services, and the interfacing of the new with the existing, presented challenges both to the Design Team and Client in terms of sequencing and constructability, and to the Contractor in terms of health and safety and infection control. Close collaboration and detailed planning addressed the issues successfully.
